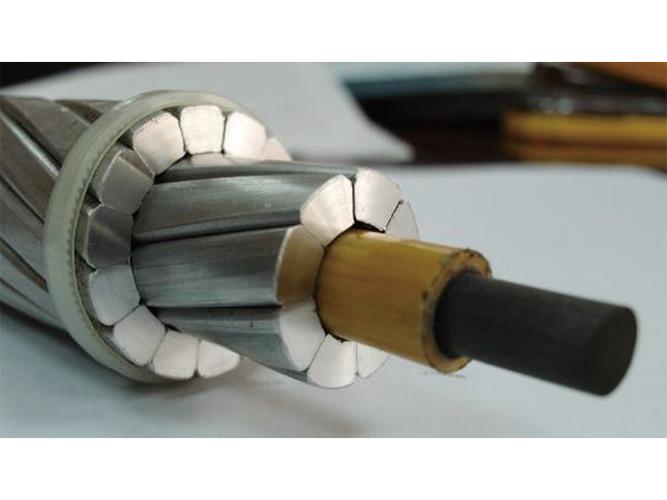

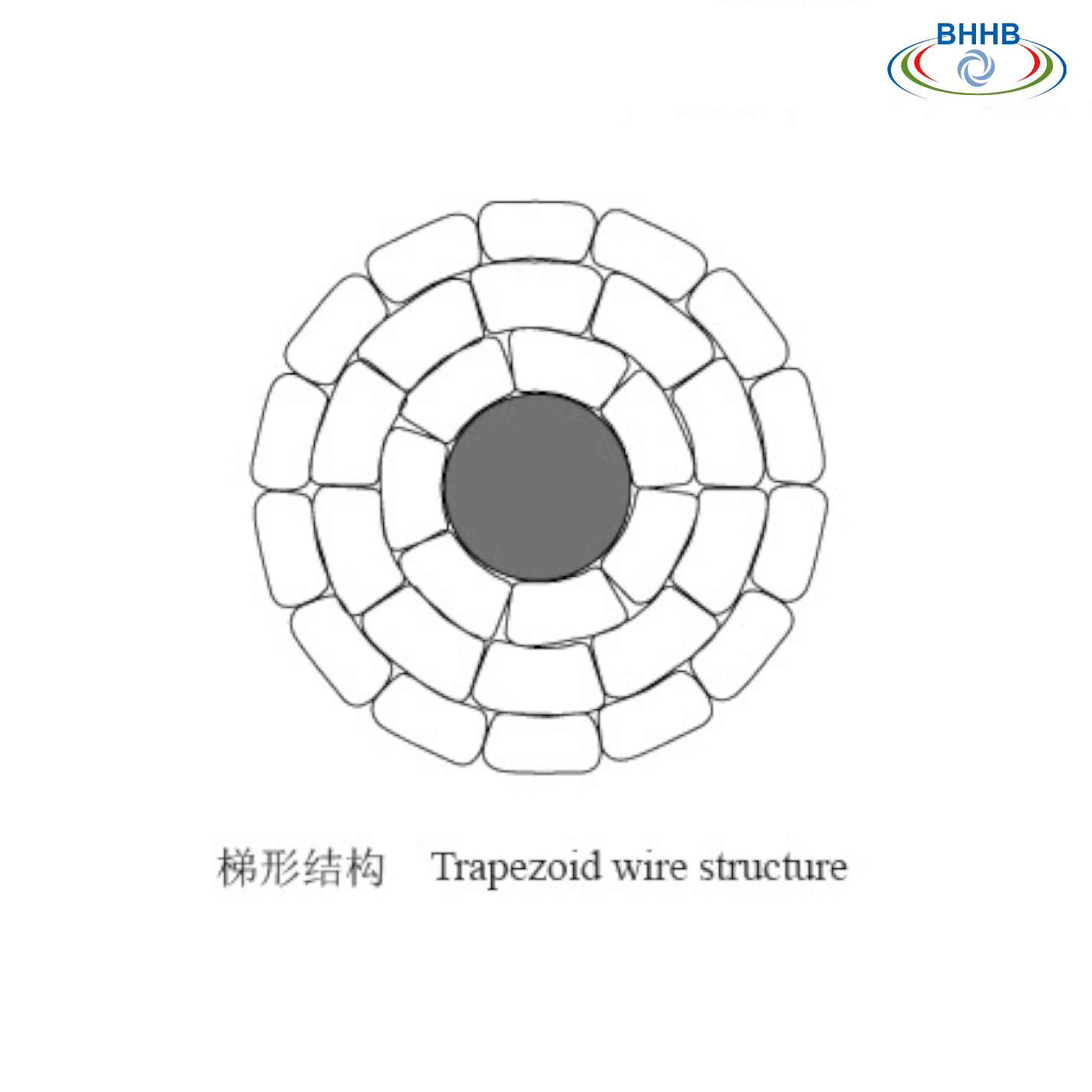

Trapezoidal structure of carbon fiber composite core conductor

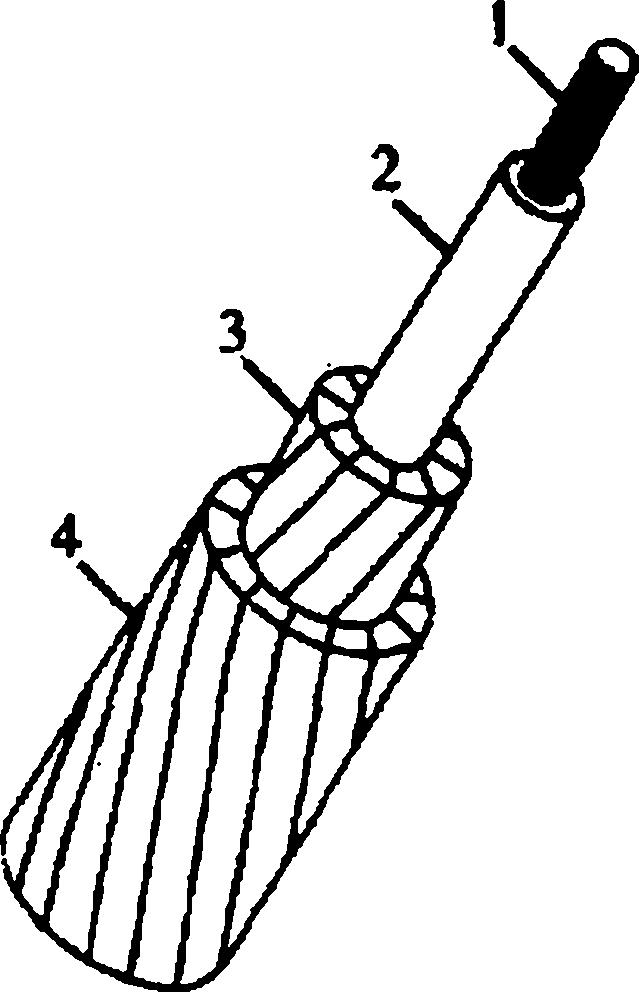

The carbon fiber composite core itself has the advantages of high strength and lightweight. The conductor layer with a trapezoidal structure can better fit the core body, reduce the stress concentration between the core body and the conductor, and further extend the service life of the wire. It is commonly found in high - voltage and extra - high - voltage transmission lines.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

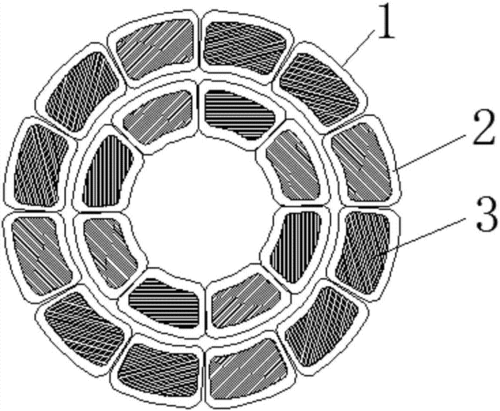

Optimize space utilization: Conductor units with a trapezoidal cross - section can be nested and arranged more closely. Compared with traditional circular conductors, it can reduce the overall outer diameter of the wire. At the same time, it can increase the filling rate of the conductor, indirectly enhancing the electrical conductivity. Improve structural stability: The geometric characteristics of the trapezoidal structure make the conductors interlock more firmly. When the wire is erected and subjected to forces (such as wind resistance and ice - covering resistance), it can reduce the risk of conductor displacement and enhance the overall mechanical stability of the wire.
