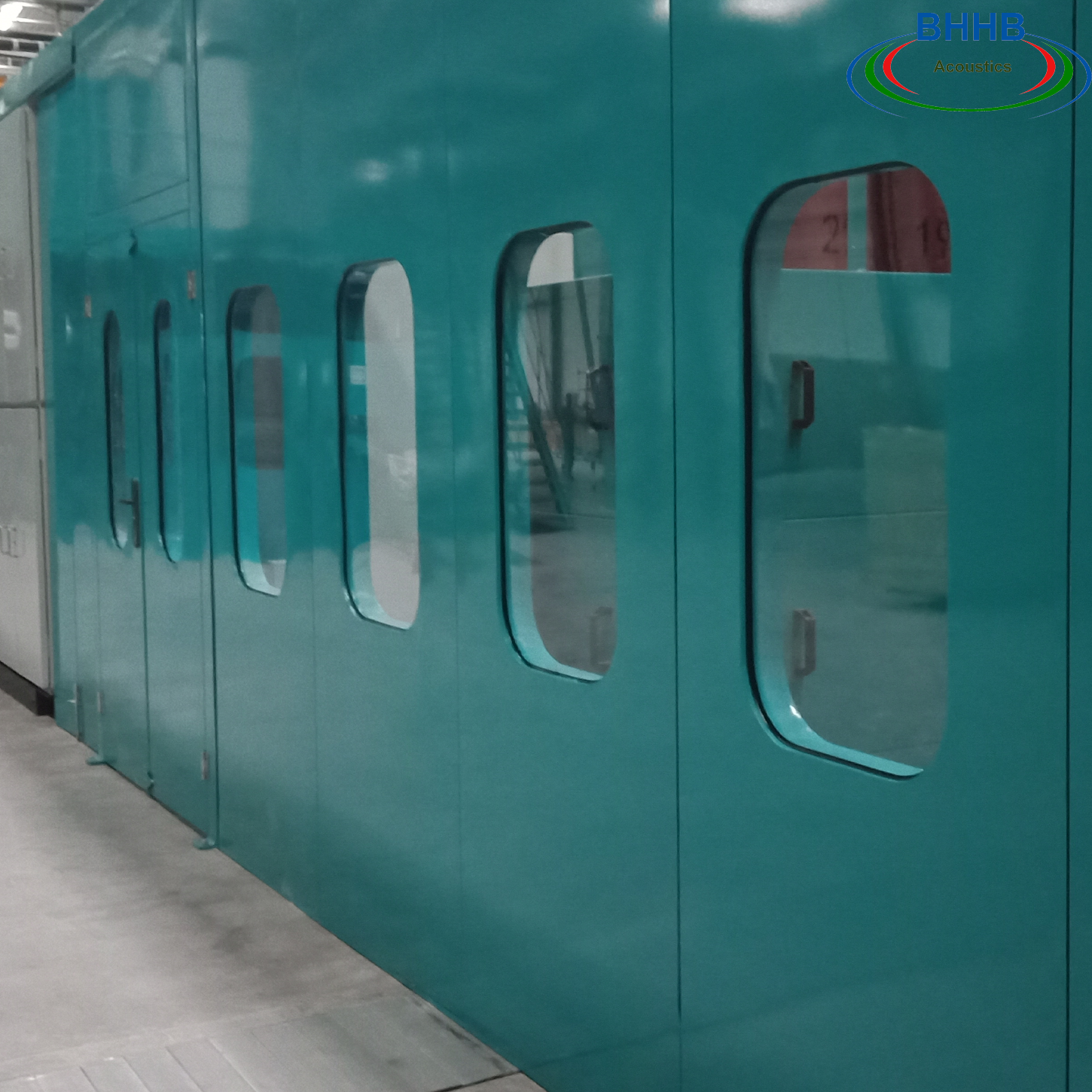

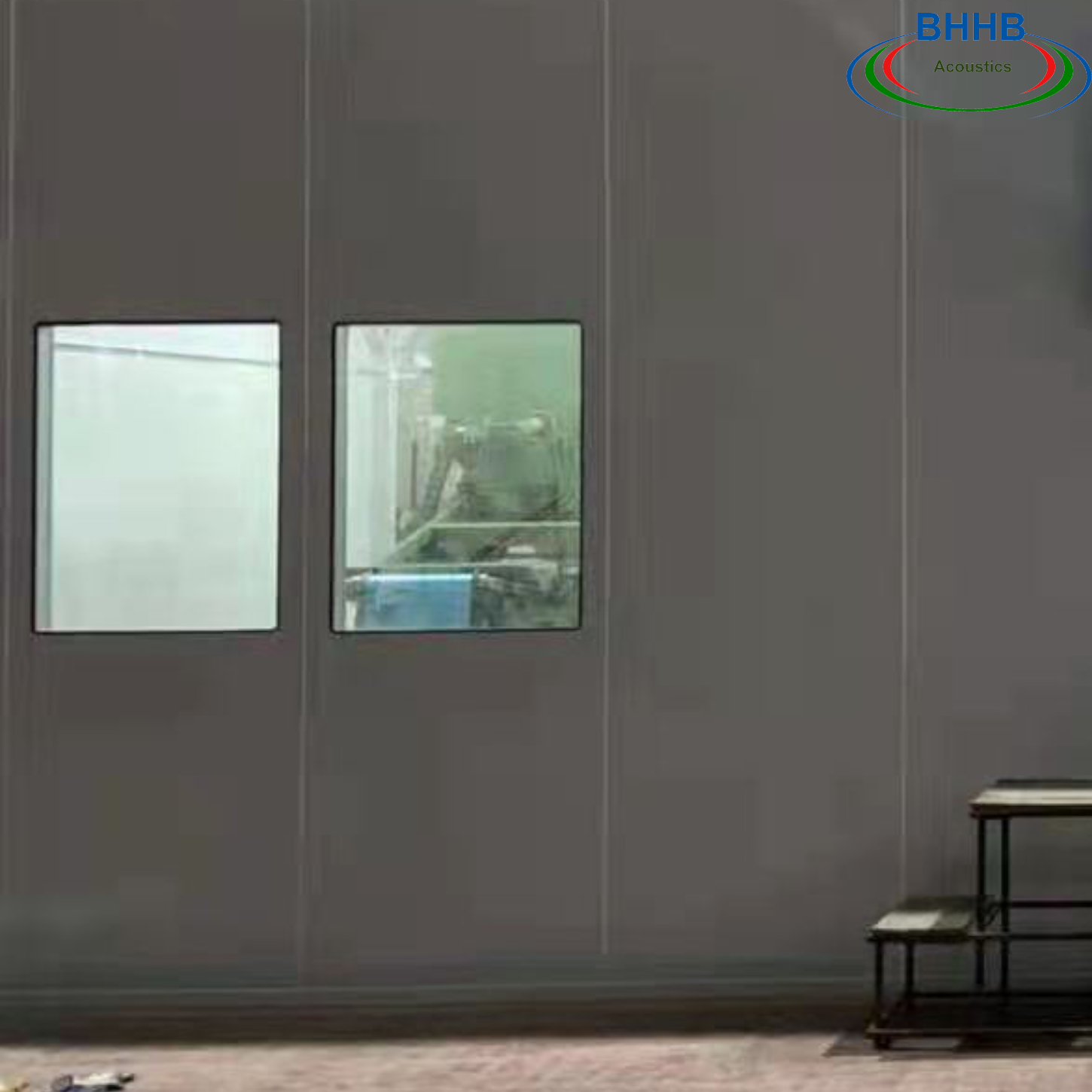

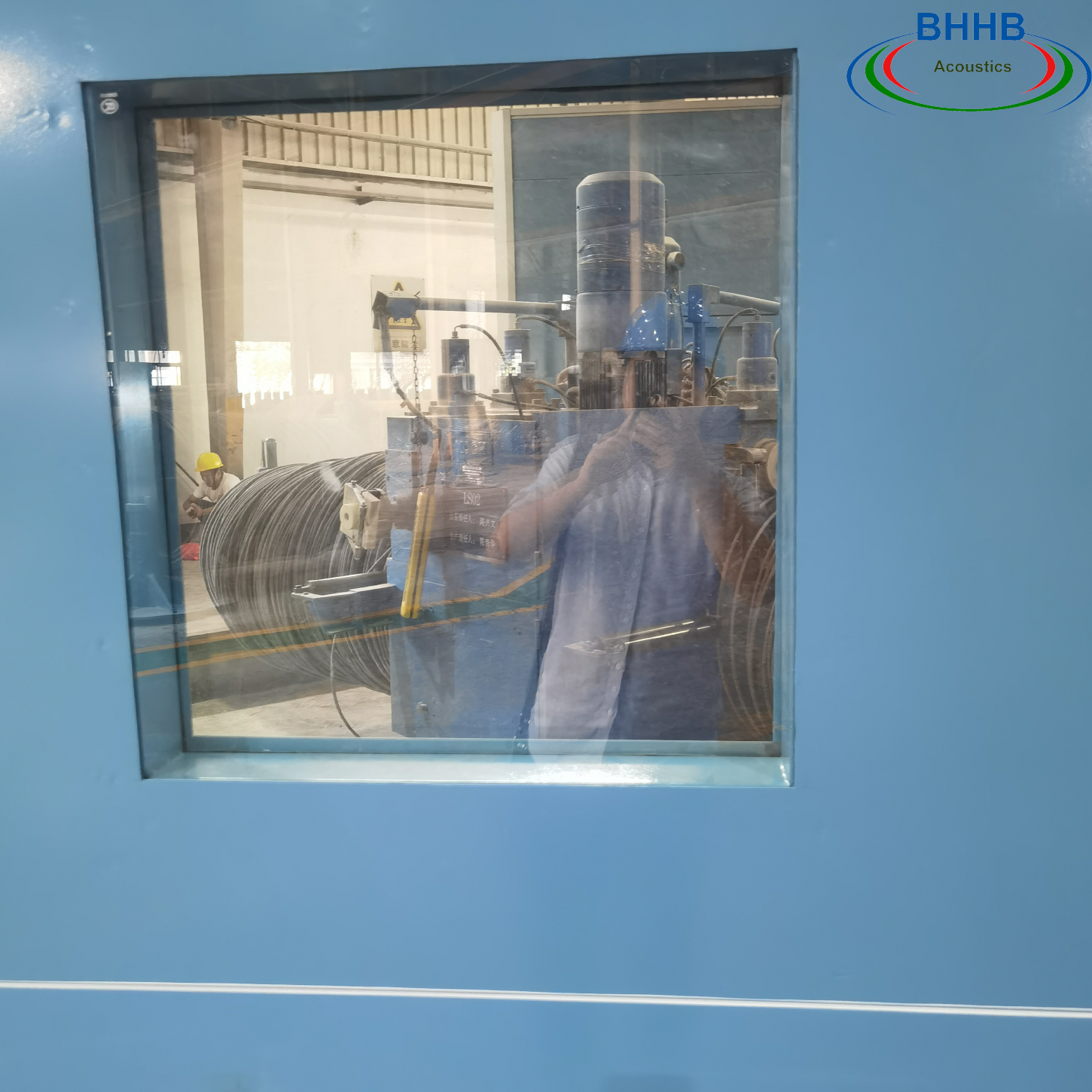

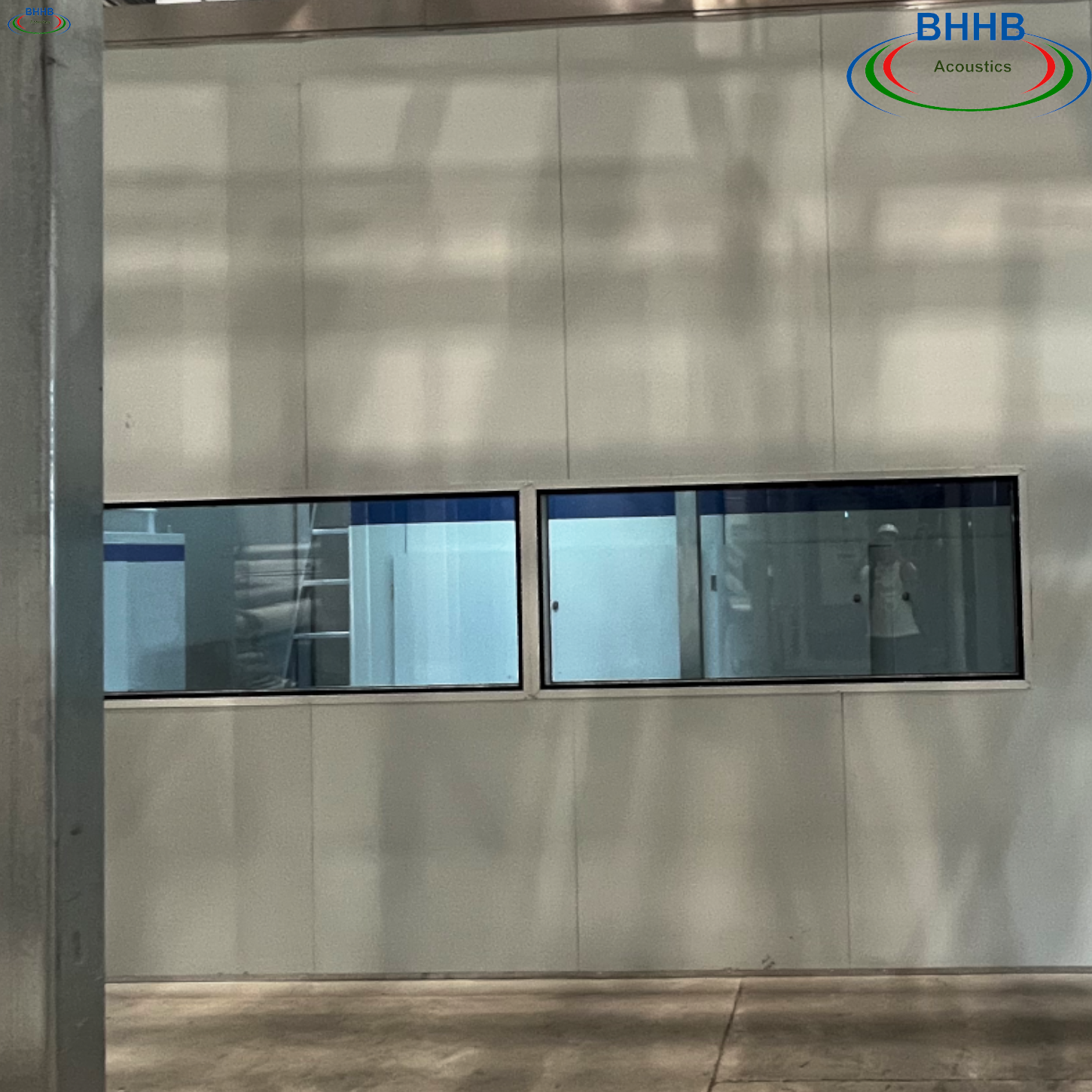

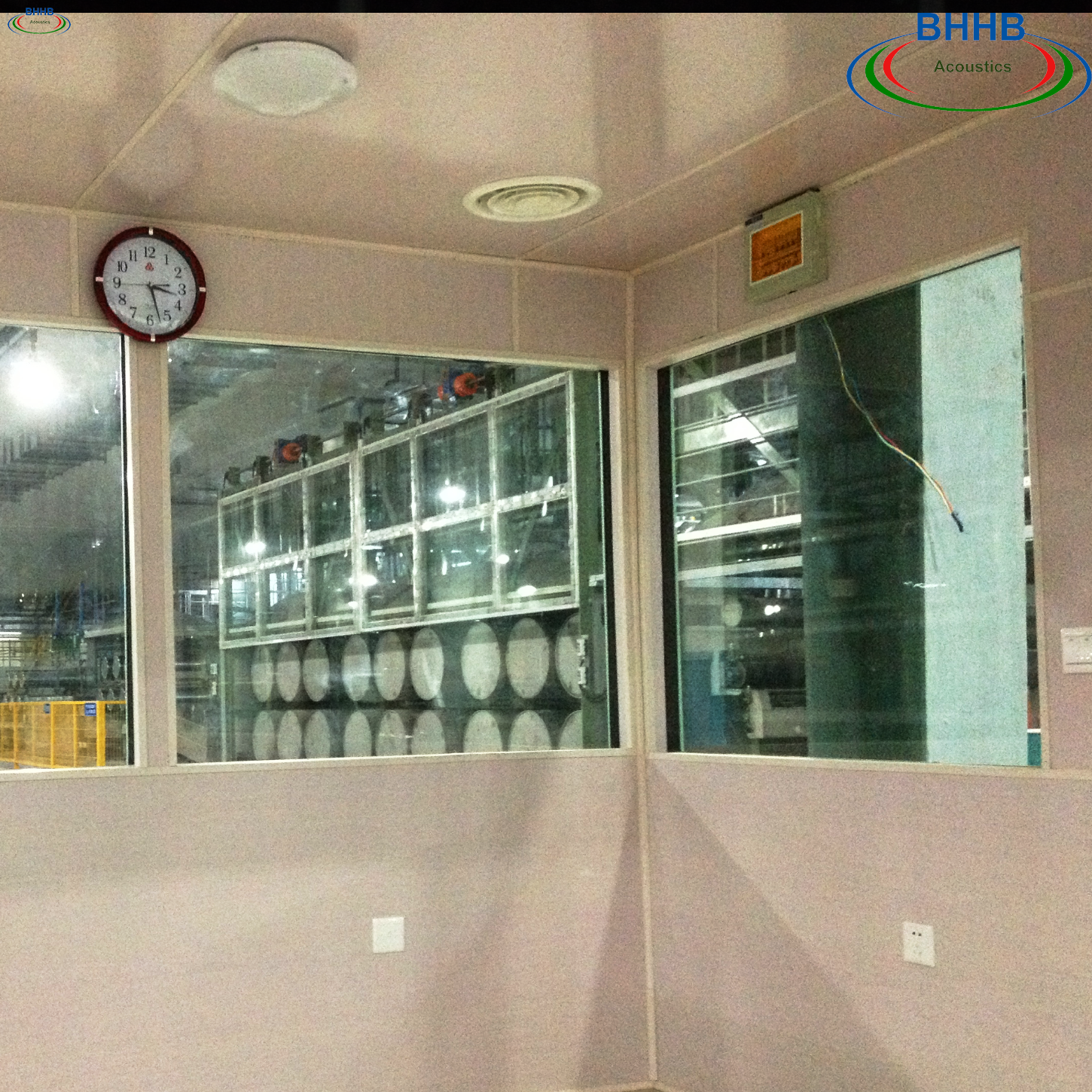

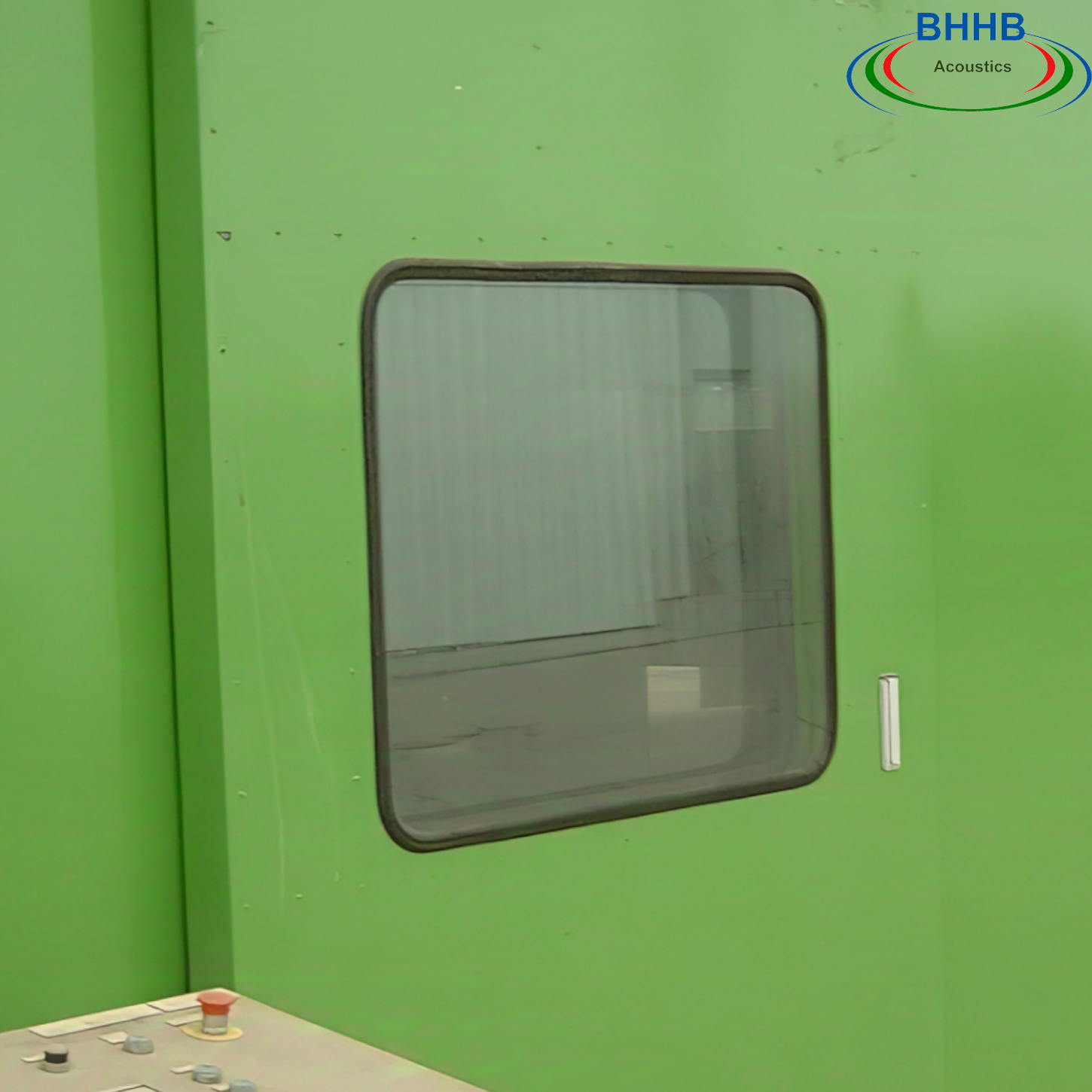

Industrial soundproof windows

Sound insulation windows typically adopt a multi-layer glass structure (double-glazed or triple-glazed) with a vacuum or inert gas  filled between the glass panes to block sound wave transmission. The window frame is usually made of sound-insulating profiles such as high-density aluminum alloy with thermal insulation strips, or PVC-U profiles with good sealing performance. The joint between the window frame and the wall is filled with sound-insulating sealants to eliminate sound leakage gaps. For high-demand scenarios, laminated glass with damping interlayers can be used to further attenuate vibration and noise.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • Sealing performance optimization: Ensure seamless fit between the window sash and frame, and use multi-channel sealing strips  to prevent air-borne noise infiltration through gaps.

  • Glass matching design: Select glass with different thicknesses for the inner and outer layers to avoid resonance and improve sound insulation efficiency; the thickness of the glass and the width of the interlayer should be determined according to the target noise frequency band .

  • Frame structure reinforcement: Use reinforced profiles with high rigidity to reduce vibration transmission of the frame itself, and avoid rigid connection between the window frame and the building structure.

  • Ventilation noise control: If ventilation is required, equip with a silent ventilation system with sound-absorbing channels to ensure air circulation while maintaining noise reduction performance.


Previous:
Next:

RELATED PRODUCTS

sound acoustic enclosure
sound acoustic enclosure
A sound insulation booth is a modular or fixed acoustic space that achieves efficient noise isolation through special structural and material design. It can reduce noise by 30-50dB in industrial scenarios and 20-40dB in commercial scenarios, and is widely used in equipment noise reduction, precision testing, office privacy, audio recording and other fields.
0
0
Carbon Fiber High-Voltage Wire Core Rod
Carbon Fiber High-Voltage Wire Core Rod
This Carbon fiber high-voltage wire core rod product is made of highly conductive carbon fiber and has a strong tensile strength, capable of withstanding a tensile force of 2400Mpa. It operates within a temperature range of 0 to 200℃, with a 90% reduction in sag at high temperatures. The product is lightweight, with a density only a quarter of that of steel, which can reduce the burden on transmission lines. Its extremely high electrical conductivity can also reduce the operational loss of the lines. It has corrosion resistance and is suitable for core materials of transmission lines in high-load and harsh environments.
0
0
acoustic noise reducers
acoustic noise reducers
A reactive muffler is an acoustic noise reduction device without sound-absorbing materials. It creates changes in acoustic impedance through sudden changes in pipe cross-sections (expansion chambers) or side-connected resonance chambers, causing sound waves to reflect and cancel each other out via interference, so as to reduce noise at specific frequencies.
0
0
Exhaust Silencer
Exhaust Silencer
The BH-SYQ250 exhaust muffler is a specially designed muffler for controlling the noise of high-temperature and high-pressure gas emissions. It features powerful noise reduction performance, with a maximum noise reduction of 45 decibels. The operating temperature of the equipment is less than 250℃, the operating pressure is no more than 2.0Mpa, and the weight per cubic meter is 150 ~ 250Kg. The installation of the product can be done by flange or welding.
0
0
Metal Acoustic Barrier
Metal Acoustic Barrier
metal acoustic barrier is a noise reduction measure with metal plates as the main body and sound-absorbing and sound-insulating materials installed inside. By physically blocking and converting sound energy, a sound shadow zone is established between the noise source and the sound reception point, achieving a noise reduction effect that attenuates the direct sound by 10~20 decibels.
0
0
Production Line Acoustic Barrier
Production Line Acoustic Barrier
The production line sound barrier is a noise control device specially designed for production line noise control. It features light weight and easy installation. Moreover, it can be equipped with soundproof doors and soundproof observation Windows as required.
0
0
Rubber Vibration Isolators For Pipelines
Rubber Vibration Isolators For Pipelines
The pipe rubber vibration isolator is a widely used vibration reduction and isolation treatment device for various types of pipes.
Main materials: Rubber elastic pads and arc-shaped metal plates
0
0
Soundproof Door
Soundproof Door
Soundproof doors can be customized according to customers' requirements. The customized content includes: appearance, opening method, size, material, whether it is equipped with an observation window (the observation window will affect the sound insulation effect of the door), noise reduction, etc.
0
0
Soundproof Room
Soundproof Room
Specification: Customized design based on requirements
Introduction: It is used to control the noise of various types of mechanical equipment and can reduce the impact of equipment operation noise on the surrounding employees or residents. It is the simplest and most effective measure for sound insulation and noise reduction of equipment.The components of a soundproof room include soundproof doors, Windows, silencers, ventilation systems, lighting systems, explosion-proof systems, etc. They are specifically made according to the requirements of the site.
0
0
Soundproof Window
Soundproof Window
This type of window is specially designed for sound insulation. It has a strong sound insulation performance. In practical applications, its sound insulation level is between twenty-thirty-two decibels. This product has a wide range of applications and can be used in industry, medical care, education, scientific research, commerce, and civil use.
0
0
db1
We have an excellent technical,which can be dasigned according to customers requirements.
