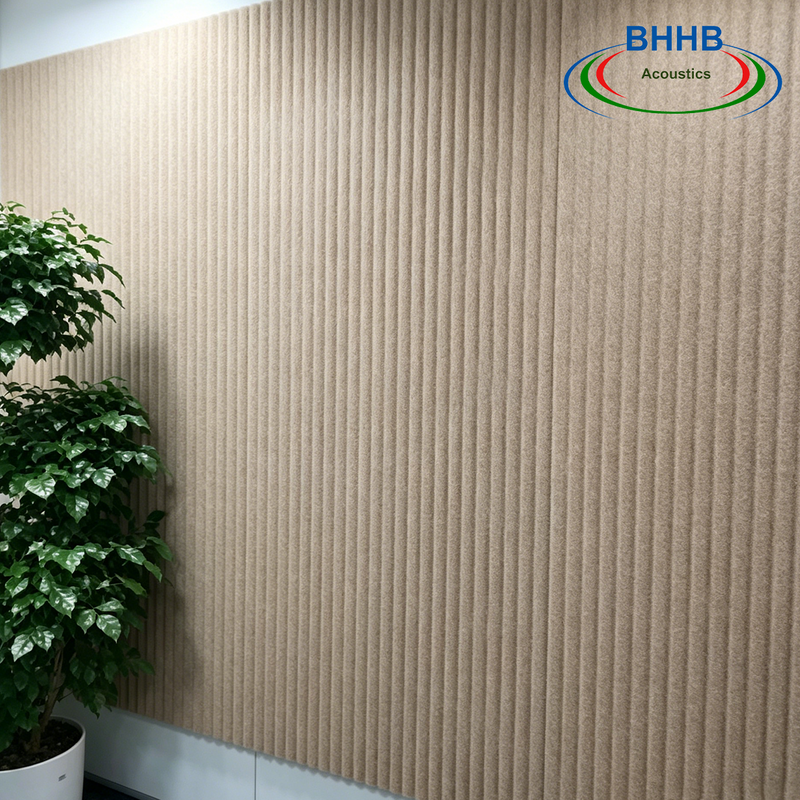

Decorative Acoustic Panel

Polyester Acoustic Panel
Material: Polyester
Thickness: 9 mm
Size: 2440 * 1220 mm
Weight：5.5Kg
Surface: Smooth on both sides
NRC: 0.85
Type: Acoustic panels
Acoustic panel type: Polyester acoustic panels
Fire-resistant class: B1
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Polyester Fiber Acoustic Panel – Performance Specifications

Performance ItemStandard ParameterNotes
Density120–200 kg/m³Higher density improves acoustic and structural performance
Thickness9mm, 12mm, 15mm, 20mmGreater thickness delivers better low-frequency sound absorption
Standard Size1220mm×2440mm, 1200mm×600mmCustom sizes available upon request
Fire RatingGB 8624 Class B1 (Flame Retardant)Oxygen index ≥35%, non-flammable, no molten drips
Environmental StandardE1 GradeFormaldehyde emission ≤0.05mg/L, formaldehyde-free, no volatile emissions, SGS certified
Temperature ResistanceStable below 80℃; prone to deformation above 120℃Not recommended near high-temperature heat sources
Humidity AdaptabilitySuitable for humidity ≤95%Moisture-proof, mildew-resistant, ideal for humid environments

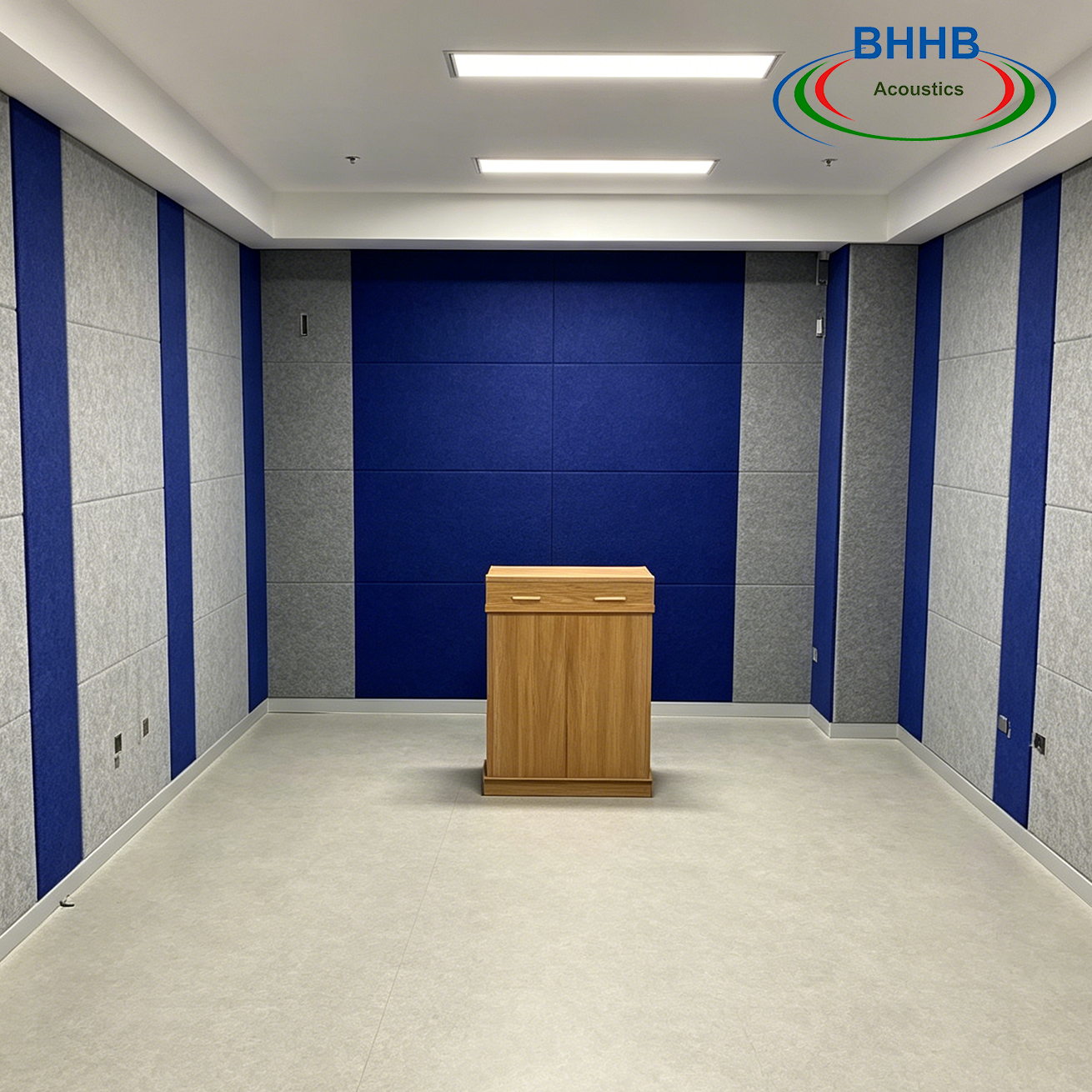

Polyester fiber sound-absorbing panels are widely used in various places requiring acoustic optimization:

  • Culture & Entertainment: KTV, cinemas, music rooms, recording studios, concert halls, multi-function halls

  • Office & Education: meeting rooms, offices, classrooms, libraries, lecture halls

  • Commercial Spaces: shopping malls, hotels, restaurants, exhibition halls, gyms

  • Transportation Hubs: subway stations, high-speed rail stations, airport lounges, waiting rooms

  • Residential Areas: home theaters, children's rooms, bedrooms, studies, living rooms

  • Special Venues: hospitals, nursing homes, gymnasiums, control rooms of industrial plants
