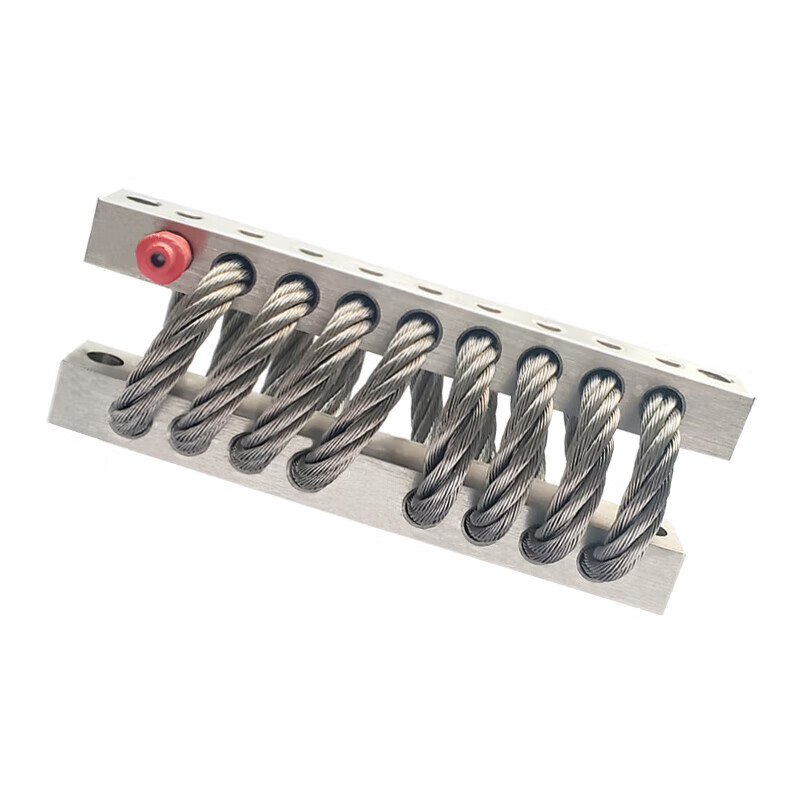

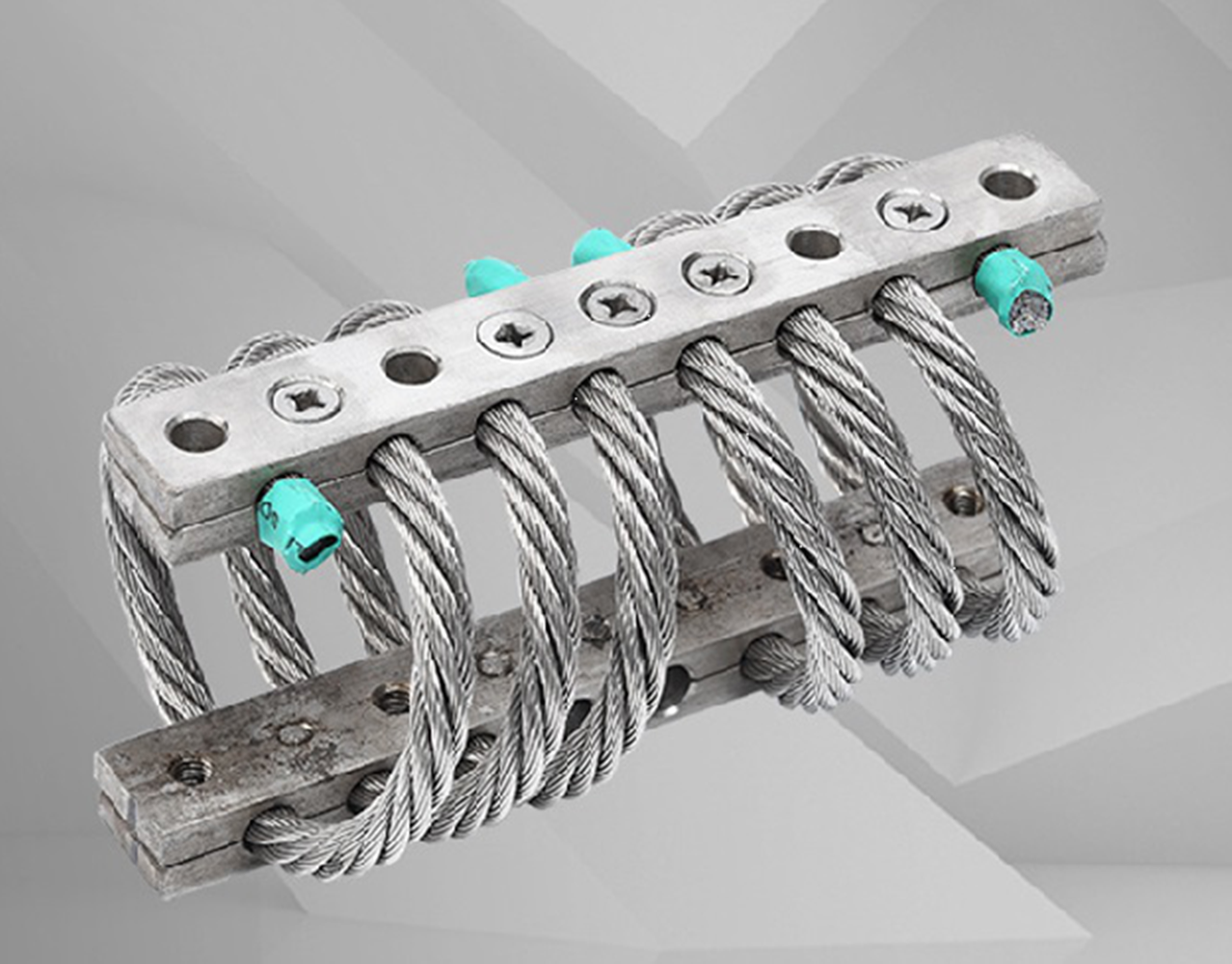

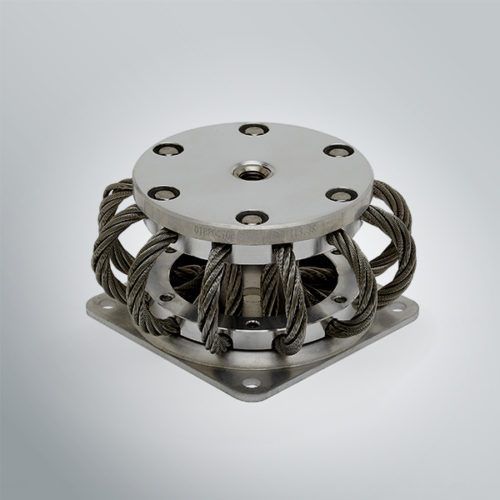

Steel wire rope shock absorber

When subjected to vibration or impact, relative friction and slippage occur between the steel wires. This dry friction consumes vibrational energy, converting mechanical energy into heat energy which is then dissipated, thereby achieving a shock absorption effect. Additionally, the spiral structure of the steel wire rope enables it to undergo elastic deformation in all directions, realizing multi-directional vibration isolation.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • Large damping: The dry friction between steel wires forms strong nonlinear damping hysteresis, which can effectively absorb and dissipate vibration energy. Under normal external excitation specified by standards, the dynamic amplification factor is not greater than 3, enabling overload protection of the system.

  • Low natural frequency: It can achieve good vibration isolation effect in a wide frequency range. When the goal is vibration reduction, it can achieve a very low system peak response frequency of 3.5Hz.

  • Strong impact resistance: The nonlinear softening stiffness and large elastic deformation capacity enable the system to absorb a large amount of impact energy and release it with a delay when subjected to large impact disturbances, effectively reducing the impact intensity.

  • Good environmental adaptability: Made of stainless steel, it is resistant to salt spray, mold, humidity, ozone, grease, sunlight, dust and various organic solvent corrosion. It can work in an environment of -75℃ to +175℃, and the limit temperature can reach +370℃.

  • Easy installation: It can withstand elastic deformation in any degree of freedom direction in space, and there are various installation methods, such as foundation support, horizontal or vertical side suspension, 45° inclined support, top suspension, etc.
